Union Semiconductor (HK) Limited
DUAL SPDT ANALOG SWITCH
UM4684H is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Union Semiconductor (HK) Limited. DUAL SPDT ANALOG SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-WFBGA, CSPBGA, number of circuits 2.
In Stock: 10,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 800mOhm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 82ns, 73ns |
| -3db Bandwidth | 20MHz |
| Charge Injection | 21pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -69dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

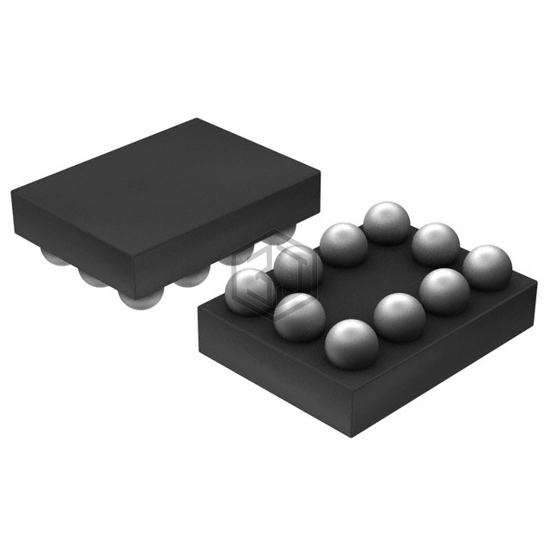

| Package / Case | 10-WFBGA, CSPBGA |
| Supplier Device Package | 10-CSP (2.05x1.55) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UM4684EEUE | Union Semiconductor (HK) Limited | DUAL SPDT ANALOG SWITCH | 100% | View |
| DG3535DB-T5-E1 | Vishay Siliconix | IC SWITCH DUAL SPDT 10MICRO | 75% | View |
| DG3536DB-T5-E1 | Vishay Siliconix | IC SWITCH DUAL SPDT 10MICRO | 75% | View |
| DG2536DQ-T1-E3 | Vishay Siliconix | IC SWITCH LV DUAL SPST 10MSOP | 65% | View |
| DG2536DN-T1-E4 | Vishay Siliconix | IC SWITCH LV DUAL SPST 10DFN | 65% | View |
| MAX4522EUE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 61% | View |
Submit your RFQ for UM4684H and get a quote within 24 hours.
