Union Semiconductor (HK) Limited
4-Line RC EMI Filter with TVS

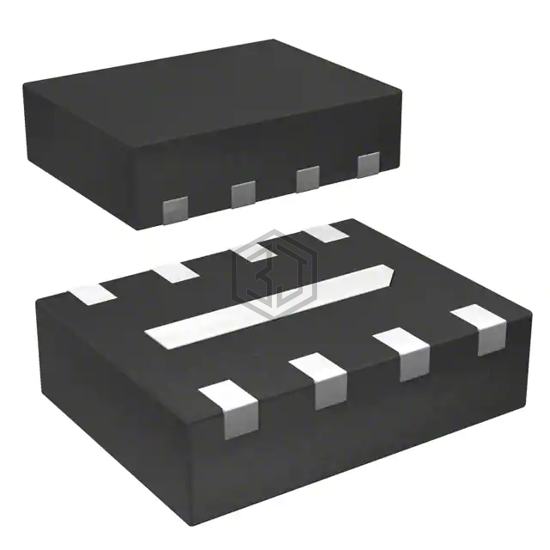

UM4401 is a EMI/RFI Filters (LC, RC Networks) manufactured by Union Semiconductor (HK) Limited. 4-Line RC EMI Filter with TVS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 5V, package / case 8-UFDFN.
In Stock: 10,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 4 |
| Center / Cutoff Frequency | 150MHz (Cutoff) |
| Attenuation Value | -36dB @ 800MHz, -32dB @ 2 ~ 5GHz |
| Resistance - Channel (Ohms) | - |
| Current | - |
| Values | R = 100Ohm, C = 10pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | 5V |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFDFN |
| Size / Dimension | 0.083" L x 0.063" W (2.10mm x 1.60mm) |
| Height | 0.024" (0.61mm) |
Submit your RFQ for UM4401 and get a quote within 24 hours.
