Union Semiconductor (HK) Limited
DUAL SPDT ANALOG SWITCH
UM2268 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Union Semiconductor (HK) Limited. DUAL SPDT ANALOG SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-UFQFN, number of circuits 2.
In Stock: 10,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 4.4V |
| Voltage - Supply, Dual (V±) | 1.8V ~ 4.4V |
| Switch Time (Ton, Toff) (Max) | 88ns, 16ns |
| -3db Bandwidth | 80MHz |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

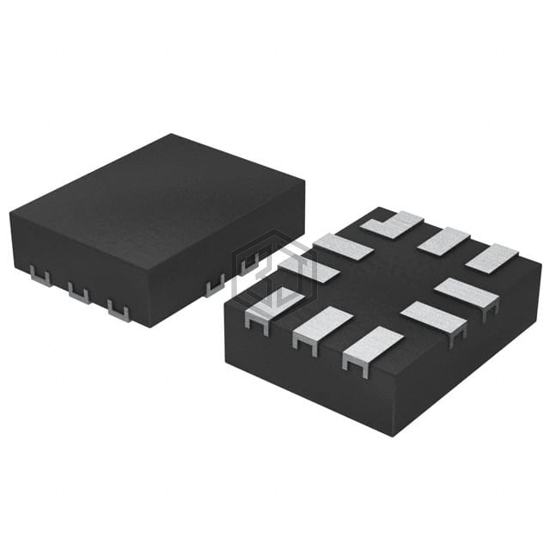

| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-QFN (1.8x1.4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1609BRUZ | Analog Devices Inc. | IC MULTIPLEXER DL 4X1 16TSSOP | 77% | View |
| DG3536DB-T5-E1 | Vishay Siliconix | IC SWITCH DUAL SPDT 10MICRO | 68% | View |
| DG2536DQ-T1-E3 | Vishay Siliconix | IC SWITCH LV DUAL SPST 10MSOP | 66% | View |
| ADG333ABRSZ | Analog Devices Inc. | IC SWITCH QUAD SPDT 20SSOP | 56% | View |
| ADG333ABRSZ-REEL | Analog Devices Inc. | IC SWITCH QUAD SPDT 20SSOP | 56% | View |
| ADG333ABRZ-REEL | Analog Devices Inc. | IC SWITCH QUAD SPDT 20SOIC | 56% | View |
Submit your RFQ for UM2268 and get a quote within 24 hours.
