Unictron Technologies Corporation
LTE TERMINAL ANTENNA

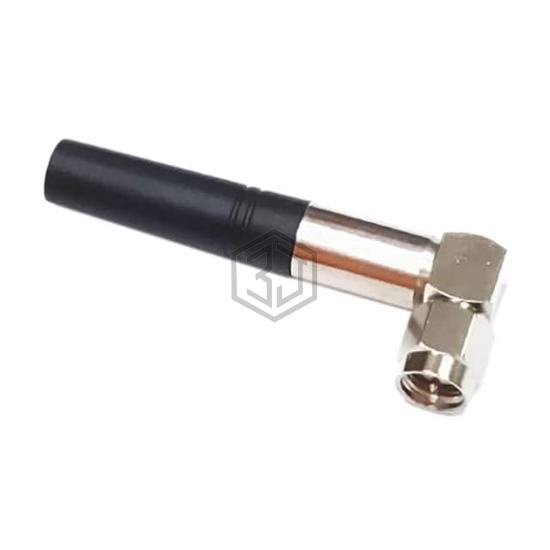

TA-24B-A-L01 is a RF Antennas manufactured by Unictron Technologies Corporation. LTE TERMINAL ANTENNA. Key specifications: mounting type Connector Mount, termination SMA Male, frequency range 698MHz, 824MHz, 1.71GHz, 1.85GHz, 1.92GHz, 2.3GHz ~ 824MHz, 960MHz, 1.88GHz, 1.99GHz, 2.17GHz, 2.69GHz.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz |
| Frequency Range | 698MHz, 824MHz, 1.71GHz, 1.85GHz, 1.92GHz, 2.3GHz ~ 824MHz, 960MHz, 1.88GHz, 1.99GHz, 2.17GHz, 2.69GHz |
| Antenna Type | Whip, Right Angle |
| Number of Bands | 6 |
| VSWR | 7.28, 7.28, 2, 3, 3, 3.5 |
| Return Loss | -2.4dB, -2.4dB, -10dB, -6dB, -6dB, -5dB |
| Gain | 3.85dBi, 2.59dBi, 4.17dBi, 4.31dBi, 4.31dBi, 3.28dBi |
| Power - Max | - |
| Features | - |
| Termination | SMA Male |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 1.890" (48.00mm) |
| Applications | LTE |
Submit your RFQ for TA-24B-A-L01 and get a quote within 24 hours.
