Unictron Technologies Corporation
3-IN-1 COMBO EXTERNAL ANTENNA

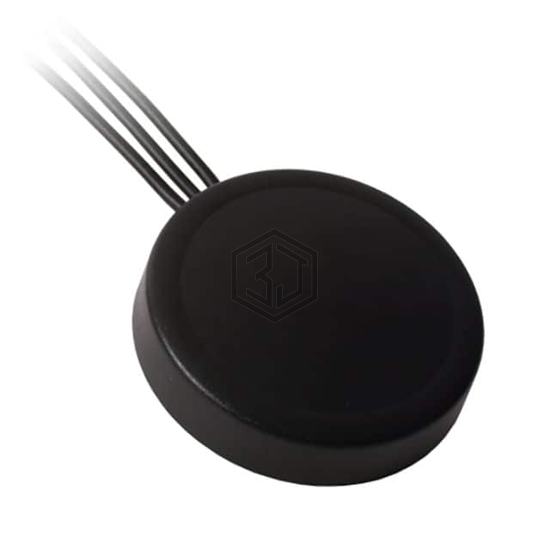

MT-4B-AS-BL03 is a RF Antennas manufactured by Unictron Technologies Corporation. 3-IN-1 COMBO EXTERNAL ANTENNA. Key specifications: mounting type Adhesive, Magnetic, termination SMA Male, frequency range 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 3.55GHz, 5.8GHz |
| Frequency Range | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz |
| Antenna Type | Module |
| Number of Bands | 12 |
| VSWR | 2, 3 |
| Return Loss | -6dB, -10dB |
| Gain | 3.62dBi, 4.24dBi, 1.21dBi, 1.21dBi, 1.44dBi, 4.77dBi, 4.77dBi, 4.31dBi, 6.44dBi, 7.23dBi, 7.87dBi, 7.12dBi, -0.78dBi, 6.97dBi, 4.89dBi, 4.46dBi, 3.19dBi |
| Power - Max | - |
| Features | Cable - 3m |
| Termination | SMA Male |
| Ingress Protection | - |
| Mounting Type | Adhesive, Magnetic |
| Height (Max) | 0.622" (15.80mm) |
| Applications | DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS, Wi-Fi |
Submit your RFQ for MT-4B-AS-BL03 and get a quote within 24 hours.
