Unictron Technologies Corporation

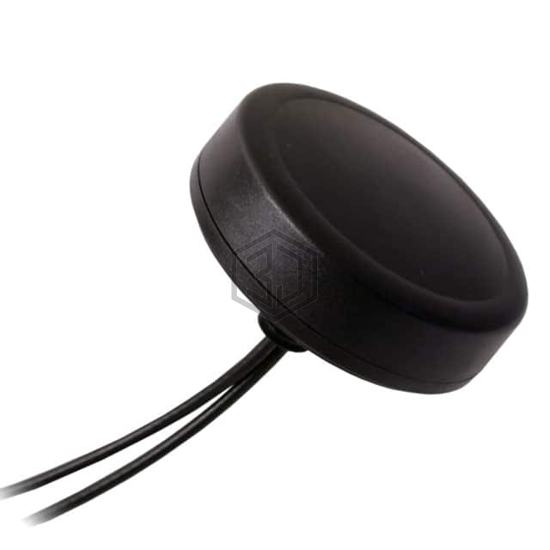

2-IN-1 COMBO EXTERNAL ANTENNA
MT-4B-AC-BL03 is a RF Antennas manufactured by Unictron Technologies Corporation. 2-IN-1 COMBO EXTERNAL ANTENNA. Key specifications: mounting type Screw Mount, termination SMA Male, frequency range 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 761MHz, 892MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz |
| Frequency Range | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz |
| Antenna Type | Module |
| Number of Bands | 9 |
| VSWR | 2 |
| Return Loss | -10dB |
| Gain | 0.15dBi, -2.17dBi, 1.21dBi, 1.21dBi, 1.44dBi, 2.52dBi, 2.71dBi, 2.71dBi, 7.93dBi |
| Power - Max | - |
| Features | Cable - 5m |
| Termination | SMA Male |
| Ingress Protection | - |
| Mounting Type | Screw Mount |
| Height (Max) | 0.787" (20.00mm) |
| Applications | DCS, Beidou, Galileo, GLONASS, GNSS, GPS, GSM, LTE, PCS, UMTS |
Submit your RFQ for MT-4B-AC-BL03 and get a quote within 24 hours.
