Unictron Technologies Corporation

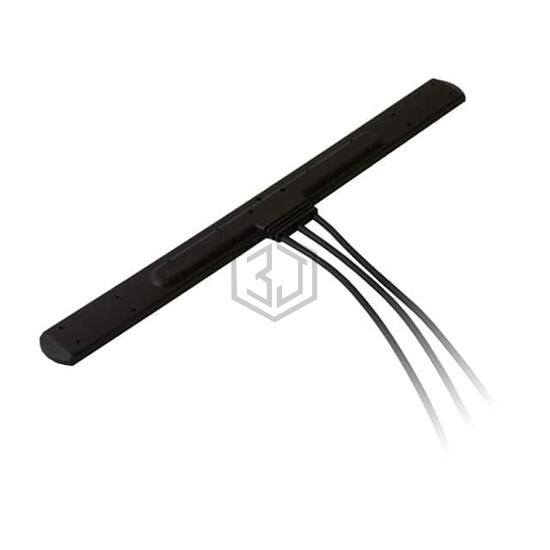

5GNR / LTE AND WIFI ANTENNA
MT-14B-AS-LKWE01 is a RF Antennas manufactured by Unictron Technologies Corporation. 5GNR / LTE AND WIFI ANTENNA. Key specifications: mounting type Adhesive, frequency range 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 5.8GHz |
| Frequency Range | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz |
| Antenna Type | Flat Bar |
| Number of Bands | 9 |
| VSWR | 2, 3 |
| Return Loss | -6dB, -10dB |
| Gain | 3.24dBi, 3.66dBi, 2.87dBi, 4.64dBi, 4.64dBi, 3.97dBi, 4.21dBi, 4.31dBi, 4.91dBi, 4.07dBi, 4.63dBi, 3.98dBi, 3, 84dBi, 4.01dBi |
| Power - Max | - |
| Features | Cable - 3m |
| Termination | - |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.297" (7.55mm) |
| Applications | 5G, DCS, GSM, LTE, PCS, UMTS, Wi-Fi |
Submit your RFQ for MT-14B-AS-LKWE01 and get a quote within 24 hours.
