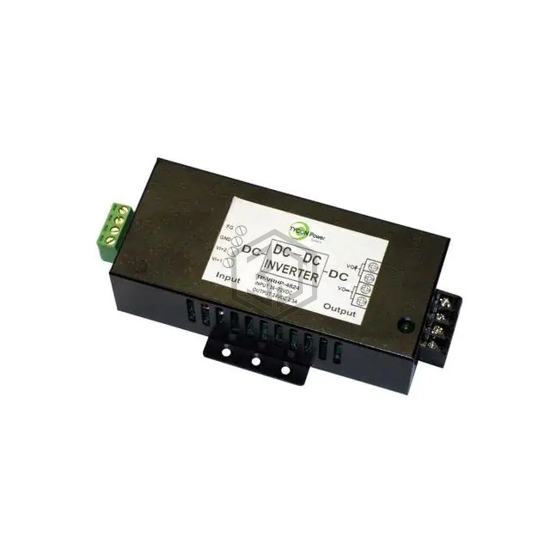

DC/DC CONVERTER 56V 70W
TP-VRHP-1256 is a DC DC Converters manufactured by Tycon Systems Inc.. DC/DC CONVERTER 56V 70W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 65°C, current - output (max) 1.25A, size / dimension 5.24" L x 3.00" W x 1.50" H (133.1mm x 76.2mm x 38.1mm).
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 10V |
| Voltage - Input (Max) | 15V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 56V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.25A |
| Power (Watts) | 70W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Efficiency | 85% |
| Operating Temperature | -30°C ~ 65°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.24" L x 3.00" W x 1.50" H (133.1mm x 76.2mm x 38.1mm) |
| Approval Agency | - |
| Standard Number | - |
