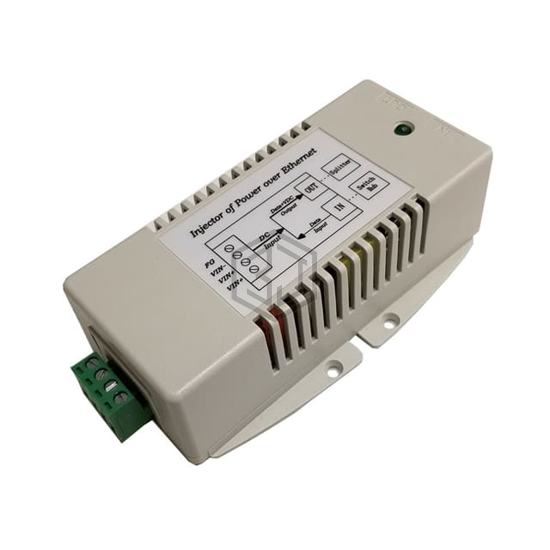

DC/DC CONVERTER 56V 70W
TP-DCDC-2456GD-BT is a DC DC Converters manufactured by Tycon Systems Inc.. DC/DC CONVERTER 56V 70W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C, current - output (max) 1.25A, size / dimension 4.90" L x 3.00" W x 1.50" H (124.5mm x 76.2mm x 38.1mm).
In Stock: 38
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 56V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.25A |
| Power (Watts) | 70W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 80% |
| Operating Temperature | -40°C ~ 70°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.90" L x 3.00" W x 1.50" H (124.5mm x 76.2mm x 38.1mm) |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for TP-DCDC-2456GD-BT and get a quote within 24 hours.
