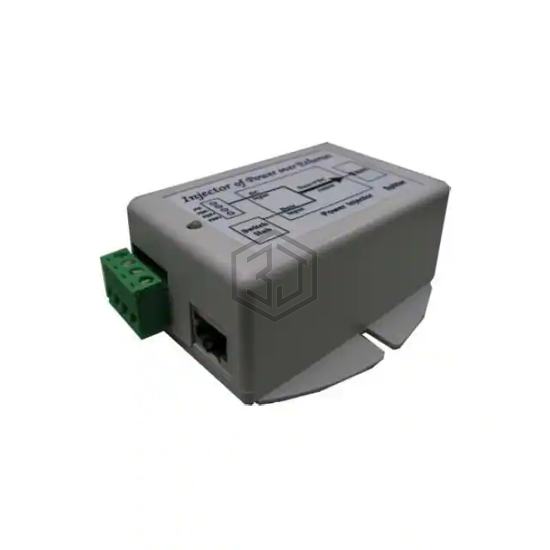

DC/DC CONVERTER 48V 24W
TP-DCDC-1248G is a DC DC Converters manufactured by Tycon Systems Inc.. DC/DC CONVERTER 48V 24W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 60°C, current - output (max) 500mA, size / dimension 3.40" L x 3.00" W x 1.40" H (86.4mm x 76.2mm x 35.6mm).
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | 24W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 75% |
| Operating Temperature | -30°C ~ 60°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.40" L x 3.00" W x 1.40" H (86.4mm x 76.2mm x 35.6mm) |
| Approval Agency | FCC, TUV |
| Standard Number | - |
Submit your RFQ for TP-DCDC-1248G and get a quote within 24 hours.
