7036-50
PLUGBOARD CARD EDGE PTH

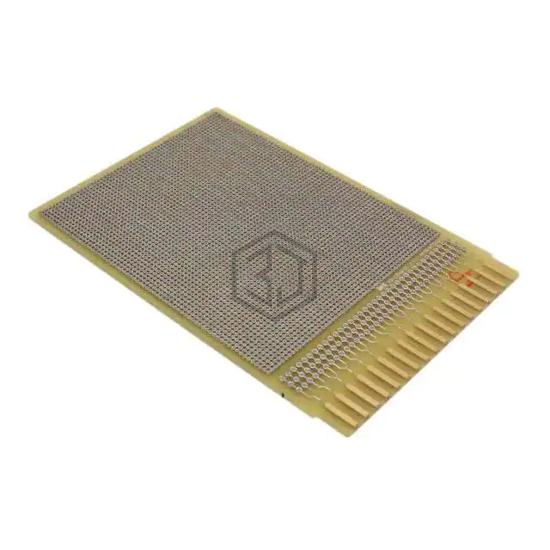

7036-50 is a Prototype Boards Perforated manufactured by Twin Industries. PLUGBOARD CARD EDGE PTH. Key specifications: size / dimension 4.00" L x 3.50" W (101.6mm x 88.9mm), pitch 0.050" (1.27mm).
In Stock: 2,923
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Proto Board Type | Plugboard, Card Edge |
| Plating | Plated Through Hole (PTH) |
| Pitch | 0.050" (1.27mm) |
| Circuit Pattern | Pad Per Hole (Round) |
| Edge Contacts | 36 @ 0.156" (3.96mm) |
| Hole Diameter | 0.028" (0.70mm) |
| Size / Dimension | 4.00" L x 3.50" W (101.6mm x 88.9mm) |
| Board Thickness | - |
Frequently Asked Questions
7036-50 is a Prototype Boards Perforated manufactured by Twin Industries. PLUGBOARD CARD EDGE PTH
The size of 7036-50 is 4.00" L x 3.50" W (101.6mm x 88.9mm).
The pitch of 7036-50 is 0.050" (1.27mm).
Yes, 7036-50 is listed as Obsolete. Consider requesting a quote for alternative parts.
