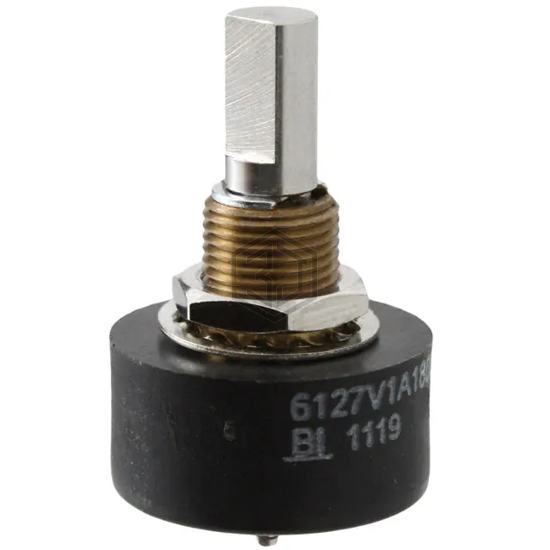

SENSOR ROTARY 180DEG SLDR TURRET
6127V1A180L.5FS is a Position Sensors - Angle, Linear Position Measuring manufactured by TT Electronics/BI. SENSOR ROTARY 180DEG SLDR TURRET. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case Module, Flatted Shaft.
In Stock: 454
| Attribute | Value |
|---|---|
| Product Status | Active |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 180°, Continuous |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | Flatted Shaft |
| Linearity | ±0.5% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Panel Mount |
| Termination Style | Solder Turret |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Module, Flatted Shaft |
| Supplier Device Package | - |
Submit your RFQ for 6127V1A180L.5FS and get a quote within 24 hours.
