TT Electronics/Power Partners Inc.

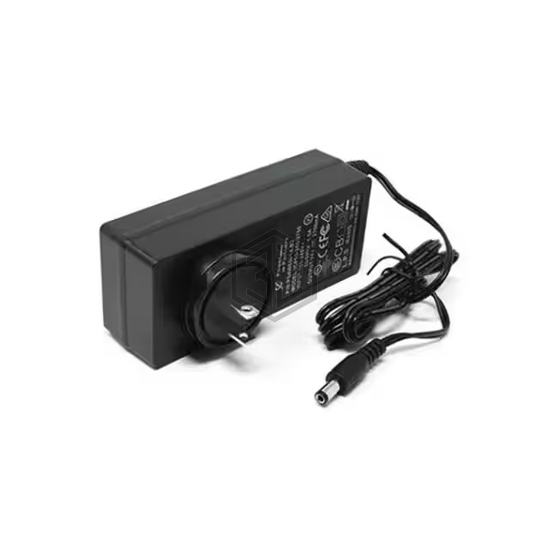

AC/DC WALL MOUNT ADAPTER 24V 65W
PSAW65I-14-B1 is a AC DC Desktop, Wall Adapters manufactured by TT Electronics/Power Partners Inc.. AC/DC WALL MOUNT ADAPTER 24V 65W. Key specifications: operating temperature 0°C ~ 60°C, voltage - input 90 ~ 264 VAC, current - output (max) 2.7A, size / dimension 4.62" L x 1.98" W x 1.40" H (117.3mm x 50.3mm x 35.6mm).
In Stock: 1,514
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Single Blade Included) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 2.7A |
| Power (Watts) | 65 W |
| No Load Power Consumption | 210mW |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 60°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm |
| Cord Length | 47" (1.20m) |
| Input Connector | Multi-Blade (Included) |
| Features | - |
| Size / Dimension | 4.62" L x 1.98" W x 1.40" H (117.3mm x 50.3mm x 35.6mm) |
| Approval Agency | CB, CE, CCC, cULuS, FCC, PSE, TUV |
| Standard Number | 62368-1 |
Submit your RFQ for PSAW65I-14-B1 and get a quote within 24 hours.
