TT Electronics/Optek Technology
LED RGB DIFFUSED 4PLCC SMD

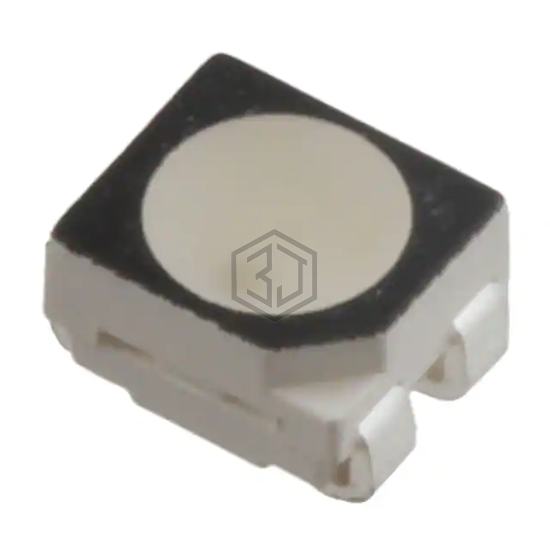

OVSARGB4R8 is a LED Indication - Discrete manufactured by TT Electronics/Optek Technology. LED RGB DIFFUSED 4PLCC SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3.2V Green, 3.2V Blue, package / case 4-PLCC, color Red, Green, Blue (RGB).
In Stock: 70,149
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 635mcd Red, 1000mcd Green, 335mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 622nm Red, 530nm Green, 468nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
Submit your RFQ for OVSARGB4R8 and get a quote within 24 hours.
