TT Electronics/Optek Technology
OPTOISO 20KV OPEN COLLECTOR

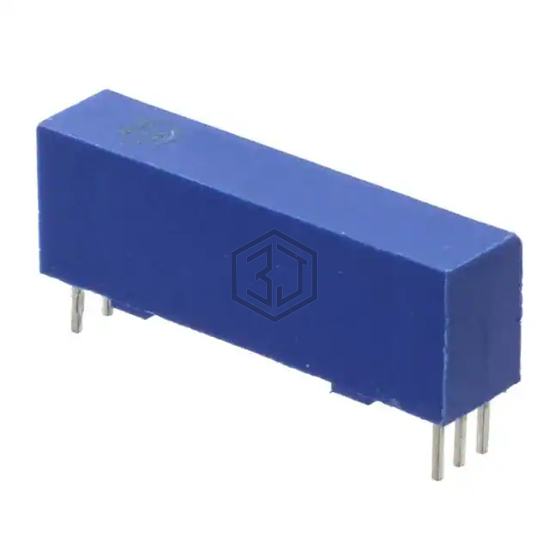

OPI1268S is a Optoisolators - Logic Output manufactured by TT Electronics/Optek Technology. OPTOISO 20KV OPEN COLLECTOR. Key specifications: mounting type Through Hole, operating temperature -50°C ~ 100°C, voltage - supply 7V, package / case 6-DIP (1.100", 27.94mm), 5 Leads.
In Stock: 9,644
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 20000VDC |
| Common Mode Transient Immunity (Min) | - |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 25 mA |
| Data Rate | 2Mbps |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | - |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 30mA |
| Voltage - Supply | 7V |
| Operating Temperature | -50°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (1.100", 27.94mm), 5 Leads |
| Supplier Device Package | - |
