TT Electronics/Optek Technology
MOSFET N-CH 60V 200MA 3SMD

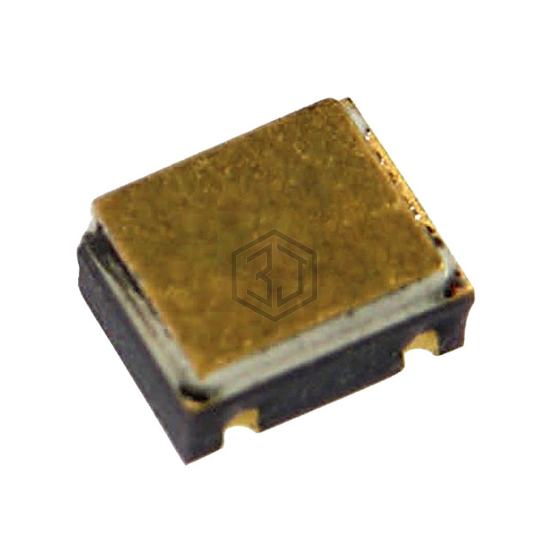

HCT7000M is a Transistors - FETs, MOSFETs - Single manufactured by TT Electronics/Optek Technology. MOSFET N-CH 60V 200MA 3SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-SMD, No Lead.
In Stock: 38
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 200mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±40V |
| Input Capacitance (Ciss) (Max) @ Vds | 60 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 300mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 3-SMD |
| Package / Case | 3-SMD, No Lead |
Submit your RFQ for HCT7000M and get a quote within 24 hours.
