TT Electronics/Optek Technology

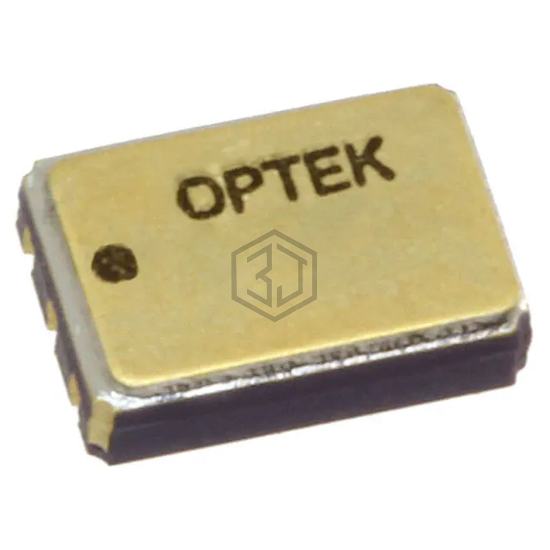

OPTOISO 1KV TRANS W/BASE 6LCC
4N49U is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. OPTOISO 1KV TRANS W/BASE 6LCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.5V, package / case 6-SMD, No Lead.
In Stock: 238
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 1000Vrms |
| Current Transfer Ratio (Min) | 200% @ 2mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 20µs, 20µs |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 35V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 40 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Supplier Device Package | 6-LCC (6.22x4.32) |
Submit your RFQ for 4N49U and get a quote within 24 hours.
