TT Electronics/Optek Technology
OPTOISO 1KV TRANS W/BASE TO78-6

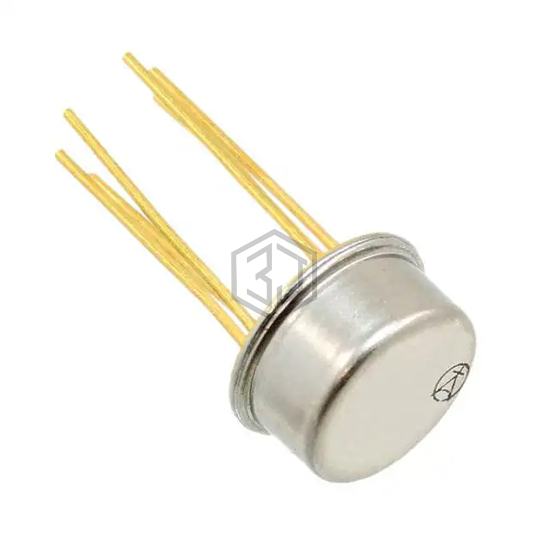

4N49TX is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. OPTOISO 1KV TRANS W/BASE TO78-6. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.5V (Max), package / case TO-78-6 Metal Can.
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 1000VDC |
| Current Transfer Ratio (Min) | 200% @ 1mA |
| Current Transfer Ratio (Max) | 1000% @ 1mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 25µs, 25µs |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 40V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.5V (Max) |
| Current - DC Forward (If) (Max) | 40 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-78-6 Metal Can |
| Supplier Device Package | TO-78-6 |
Submit your RFQ for 4N49TX and get a quote within 24 hours.
