TT Electronics/Optek Technology

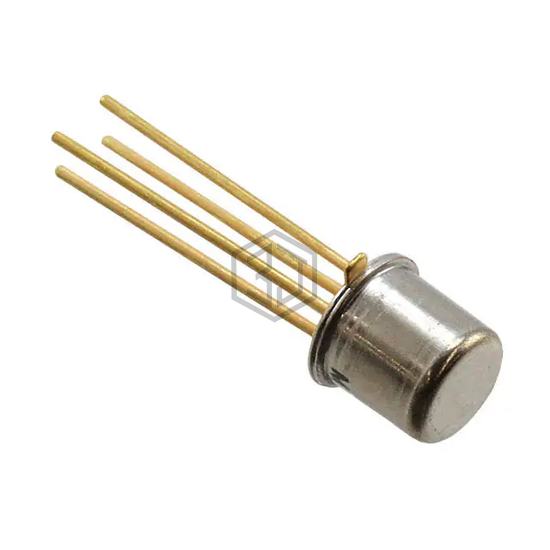

OPTOISOLATOR 1KV TRANS TO72-4
3N261 is a Optoisolators - Transistor, Photovoltaic Output manufactured by TT Electronics/Optek Technology. OPTOISOLATOR 1KV TRANS TO72-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.5V (Max), package / case TO-206AF, TO-72-4 Metal Can.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 1000VDC |
| Current Transfer Ratio (Min) | 5% @ 1mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 20µs, 10µs (Max) |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 30V |
| Current - Output / Channel | 30mA |
| Voltage - Forward (Vf) (Typ) | 1.5V (Max) |
| Current - DC Forward (If) (Max) | 40 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
| Supplier Device Package | TO-72-4 |
Submit your RFQ for 3N261 and get a quote within 24 hours.
