FIXED IND 3.3UH 6.6A 30 MOHM SMD

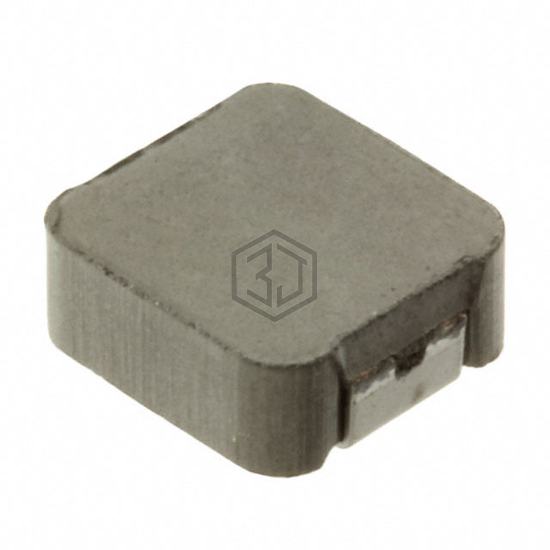

HM72E-063R3LFTR13 is a Fixed Inductors manufactured by TT Electronics/BI Magnetics. FIXED IND 3.3UH 6.6A 30 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case 2-SMD, current rating (amps) 6.6 A.
In Stock: 158
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Type | Molded |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.6 A |
| Current - Saturation (Isat) | 8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 30mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Supplier Device Package | - |
| Size / Dimension | 0.285" L x 0.268" W (7.23mm x 6.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for HM72E-063R3LFTR13 and get a quote within 24 hours.
