FIXED IND 1.5UH 12A 5.8 MOHM SMD

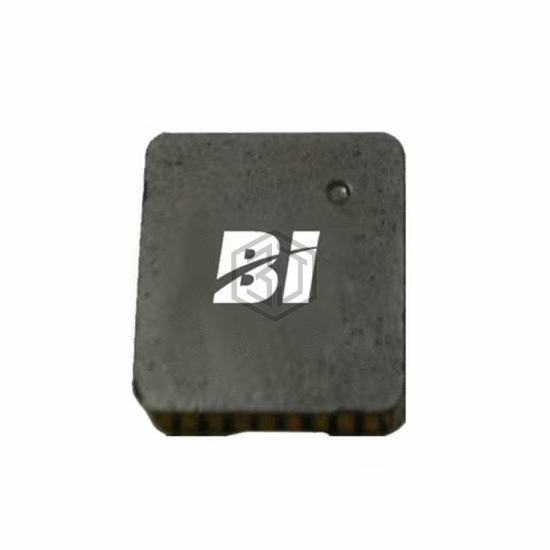

HM72A-101R5LFTR13 is a Fixed Inductors manufactured by TT Electronics/BI Magnetics. FIXED IND 1.5UH 12A 5.8 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 12 A.
In Stock: 312
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Type | Molded |
| Material - Core | - |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 12 A |
| Current - Saturation (Isat) | 27.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 5.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.453" L x 0.413" W (11.50mm x 10.50mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for HM72A-101R5LFTR13 and get a quote within 24 hours.
