FIXED IND 12UH 1.55A 70 MOHM SMD

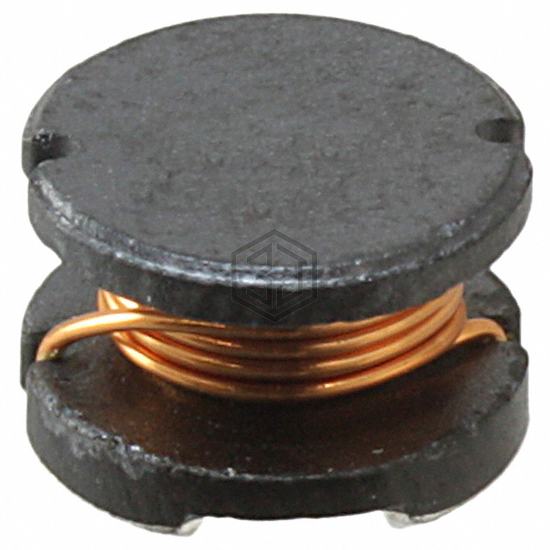

HM66-60120LFTR13 is a Fixed Inductors manufactured by TT Electronics/BI Magnetics. FIXED IND 12UH 1.55A 70 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.55 A.
In Stock: 5,876
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 12 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.55 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 70mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.264" L x 0.264" W (6.70mm x 6.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for HM66-60120LFTR13 and get a quote within 24 hours.
