FIXED IND 10UH 1.3A 65 MOHM SMD

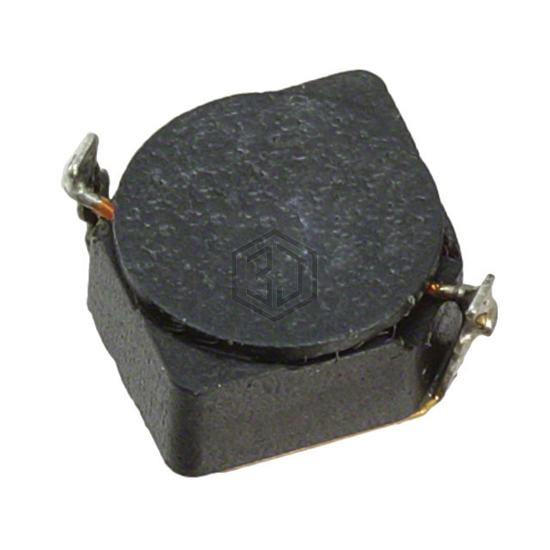

HM66-50100LFTR13 is a Fixed Inductors manufactured by TT Electronics/BI Magnetics. FIXED IND 10UH 1.3A 65 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.3 A.
In Stock: 2,599
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 65mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.224" L x 0.224" W (5.70mm x 5.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for HM66-50100LFTR13 and get a quote within 24 hours.
