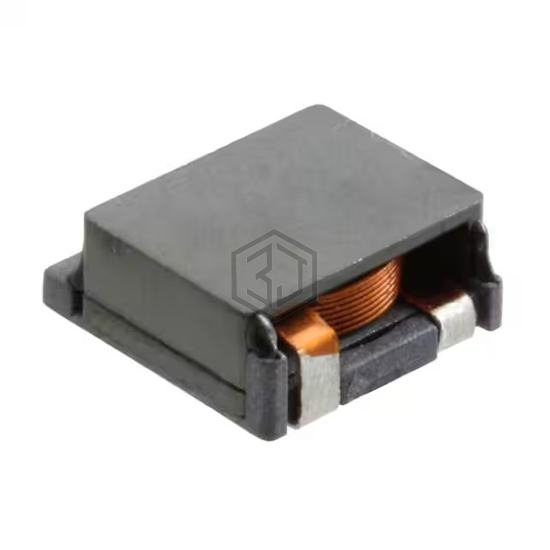

FIXED IND 8.2UH 4.5A 11.4 MOHM
HM65-8R2LFTR13 is a Fixed Inductors manufactured by TT Electronics/BI Magnetics. FIXED IND 8.2UH 4.5A 11.4 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 130°C, package / case Nonstandard, current rating (amps) 4.5 A.
In Stock: 324
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.5 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 11.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Height - Seated (Max) | 0.220" (5.60mm) |
Submit your RFQ for HM65-8R2LFTR13 and get a quote within 24 hours.
