FIXED IND 3.3UH 2.6 MOHM SMD

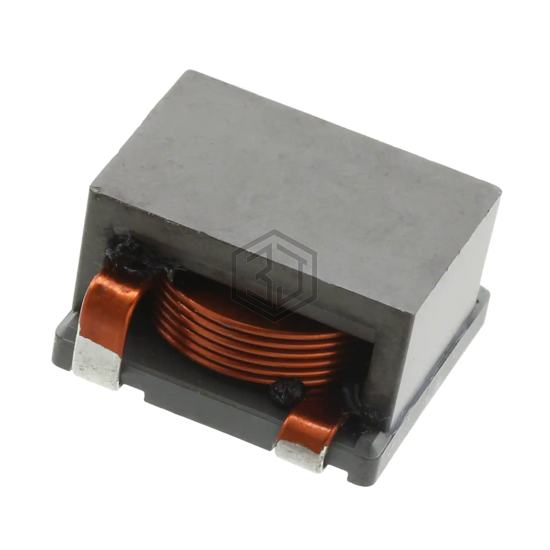

HA65A-25153R3LF is a Fixed Inductors manufactured by TT Electronics/BI Magnetics. FIXED IND 3.3UH 2.6 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 155°C, package / case Nonstandard, size / dimension 1.043" L x 1.043" W (26.50mm x 26.50mm).
In Stock: 243
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | - |
| Current - Saturation (Isat) | 87A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 24MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.043" L x 1.043" W (26.50mm x 26.50mm) |
| Height - Seated (Max) | 0.610" (15.50mm) |
Submit your RFQ for HA65A-25153R3LF and get a quote within 24 hours.
