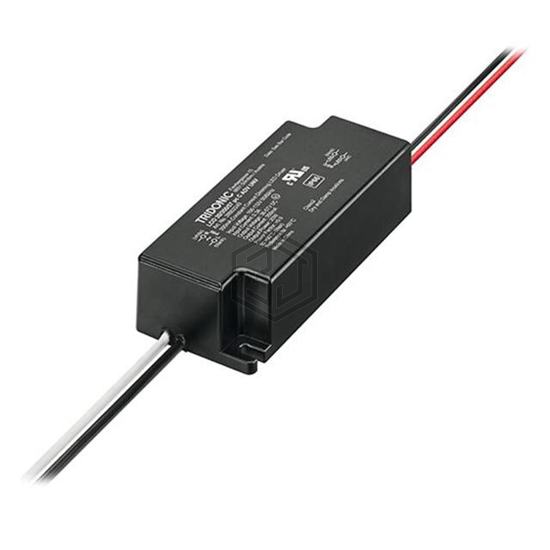

LED DRIVER 20W .700MA PHASE CUT
28002251 is a LED Drivers manufactured by Tridonic Inc. LED DRIVER 20W .700MA PHASE CUT. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 17 ~ 28V, current - output (max) 700mA, size / dimension 3.76" L x 1.59" W x 0.98" H (95.5mm x 40.4mm x 24.9mm).
In Stock: 2,341
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 108VAC |
| Voltage - Input (Max) | 132VAC |
| Voltage - Output | 17 ~ 28V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 20 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OVP, SCP |
| Ratings | IP66, NEMA 4 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.76" L x 1.59" W x 0.98" H (95.5mm x 40.4mm x 24.9mm) |
| Approval Agency | cURus |
| Standard Number | - |
Submit your RFQ for 28002251 and get a quote within 24 hours.
