LED DRIVER 75W 1.05MA 0-10V IP67

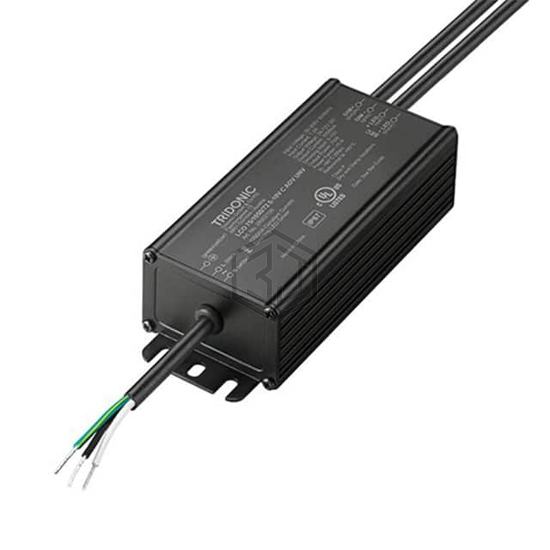

28002156 is a LED Drivers manufactured by Tridonic Inc. LED DRIVER 75W 1.05MA 0-10V IP67. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 22 ~ 72V, current - output (max) 1.05A, size / dimension 6.22" L x 2.40" W x 1.49" H (158.0mm x 61.0mm x 37.8mm).
In Stock: 4,191
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 22 ~ 72V |
| Current - Output (Max) | 1.05A |
| Power (Watts) | 76 W |
| Voltage - Isolation | - |
| Dimming | Analog |
| Features | OVP, SCP |
| Ratings | IP67, NEMA 4 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 91% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.22" L x 2.40" W x 1.49" H (158.0mm x 61.0mm x 37.8mm) |
| Approval Agency | cULus |
| Standard Number | - |
