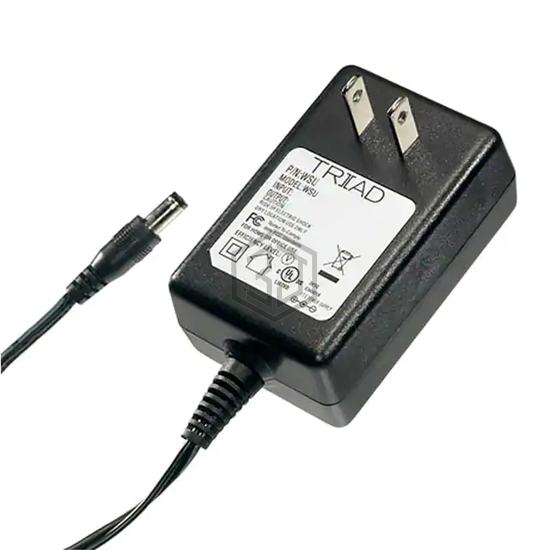

WSU075-3200 - Triad Magnetics - AC DC Desktop, Wall Adapters

WSU075-3200

Triad Magnetics

AC/DC WALL MNT ADAPTER 7.5V 24W

WSU075-3200 is a AC DC Desktop, Wall Adapters manufactured by Triad Magnetics. AC/DC WALL MNT ADAPTER 7.5V 24W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 3.2A, size / dimension 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm).

In Stock: 82

Product Attributes

AttributeValue
Product StatusActive
Region UtilizedNorth America
FormWall Mount (Class II)
Input TypeFixed Blade
Voltage - Input90 ~ 264 VAC
Voltage - Output7.5V
Current - Output (Max)3.2A
Power (Watts)24 W
No Load Power Consumption100mW (Max)
PolarizationPositive Center
ApplicationsITE (Commercial)
EfficiencyLevel VI
Operating Temperature0°C ~ 40°C
Output ConnectorBarrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Cord Length72" (1.83m)
Input ConnectorNEMA 1-15P
Features-
Size / Dimension3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm)
Approval AgencycETLus
Standard Number-

Frequently Asked Questions

WSU075-3200 is a AC DC Desktop, Wall Adapters manufactured by Triad Magnetics. AC/DC WALL MNT ADAPTER 7.5V 24W

The operating temperature range of WSU075-3200 is 0°C ~ 40°C.

The supply voltage of WSU075-3200 is 90 ~ 264 VAC.

The current rating of WSU075-3200 is 3.2A.

The efficiency of WSU075-3200 is Level VI.
