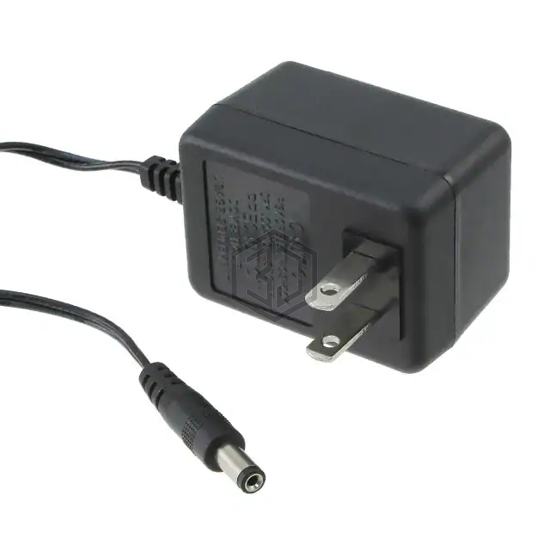

AC/DC WALL MOUNT ADAPTER 6V 4.8W
WDU6-800 is a AC DC Desktop, Wall Adapters manufactured by Triad Magnetics. AC/DC WALL MOUNT ADAPTER 6V 4.8W. Key specifications: operating temperature -10°C ~ 40°C, voltage - input 120VAC, current - output (max) 800mA, size / dimension 2.76" L x 1.97" W x 1.61" H (70.0mm x 50.0mm x 41.0mm).
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 120VAC |
| Voltage - Output | 6V |
| Current - Output (Max) | 800mA |
| Power (Watts) | 4.8 W |
| No Load Power Consumption | - |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | - |
| Operating Temperature | -10°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 72" (1.83m) |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 2.76" L x 1.97" W x 1.61" H (70.0mm x 50.0mm x 41.0mm) |
| Approval Agency | cUL, UL |
| Standard Number | - |
Submit your RFQ for WDU6-800 and get a quote within 24 hours.
