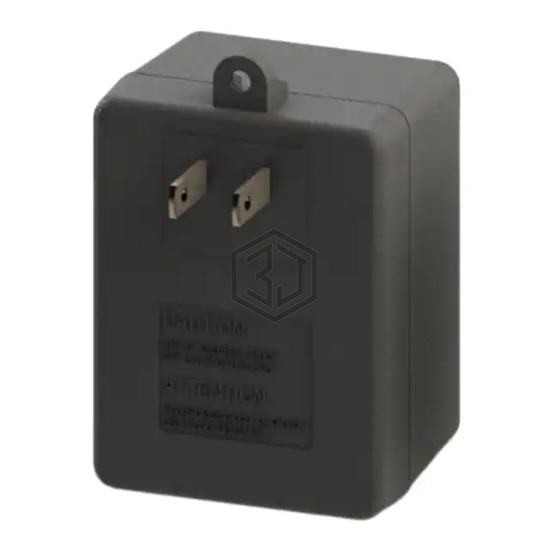

AC/AC WALL MNT ADAPTER 16V 750MA
WAU160-750T is a AC AC Wall Adapters manufactured by Triad Magnetics. AC/AC WALL MNT ADAPTER 16V 750MA. Key specifications: operating temperature -10°C ~ 50°C, voltage - input 120VAC, current - output (max) 750mA, size / dimension 1.89" L x 2.36" W x 3.15" H (48.0mm x 60.0mm x 80.0mm).
In Stock: 5,093
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | North America |
| Form | Wall Mount |
| Input Type | Fixed Blade |
| Voltage - Input | 120VAC |
| Voltage - Output | 16VAC |
| Current - Output (Max) | 750mA |
| Power (Watts) | 12 W |
| No Load Power Consumption | 210mW (Max) |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | -10°C ~ 50°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm |
| Size / Dimension | 1.89" L x 2.36" W x 3.15" H (48.0mm x 60.0mm x 80.0mm) |
| Approval Agency | cULus |
| Standard Number | - |
Submit your RFQ for WAU160-750T and get a quote within 24 hours.
