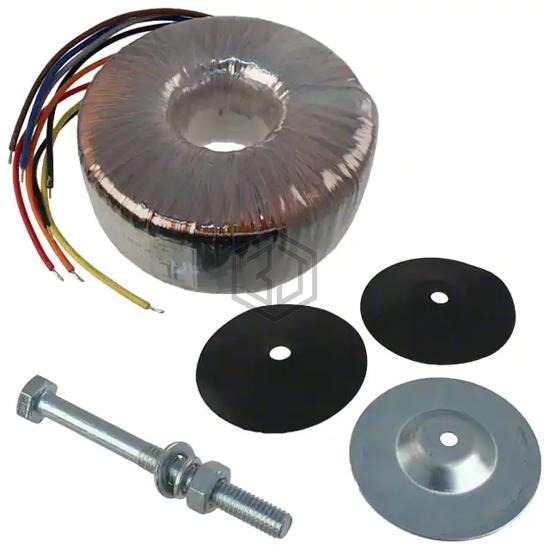

VPT230-700 - Triad Magnetics - Power Transformers

VPT230-700

Triad Magnetics

PWR XFMR TORO 160VA CHAS MT

VPT230-700 is a Power Transformers manufactured by Triad Magnetics. PWR XFMR TORO 160VA CHAS MT. Key specifications: mounting type Chassis Mount, current - output (max) Parallel 1.4A, Series 700mA, size / dimension 103.00mm Dia x 48.00mm W, termination style Wire Leads.

In Stock: 78

Product Attributes

AttributeValue
Product StatusActive
TypeToroidal
Voltage - Primary115V, 230V
Voltage - Secondary (Full Load)Parallel 115V, Series 230V
Current - Output (Max)Parallel 1.4A, Series 700mA
Primary Winding(s)Dual
Secondary Winding(s)Dual
Center TapNo
Power - Max160VA
Mounting TypeChassis Mount
Termination StyleWire Leads
Size / Dimension103.00mm Dia x 48.00mm W
Height - Seated (Max)52.0mm
Voltage - Isolation4000Vrms
Weight3.6 lbs (1.6 kg)

Frequently Asked Questions

VPT230-700 is a Power Transformers manufactured by Triad Magnetics. PWR XFMR TORO 160VA CHAS MT

The mounting type of VPT230-700 is Chassis Mount.

The current rating of VPT230-700 is Parallel 1.4A, Series 700mA.

The size of VPT230-700 is 103.00mm Dia x 48.00mm W.
