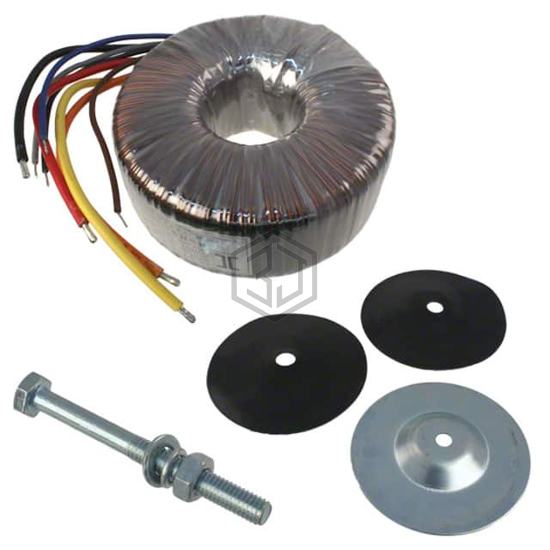

VPT18-8800 - Triad Magnetics - Power Transformers

VPT18-8800

Triad Magnetics

PWR XFMR TORO 160VA CHAS MT

VPT18-8800 is a Power Transformers manufactured by Triad Magnetics. PWR XFMR TORO 160VA CHAS MT. Key specifications: mounting type Chassis Mount, current - output (max) Parallel 17.6A, Series 8.8A, size / dimension 103.00mm Dia x 48.00mm W, termination style Wire Leads.

In Stock: 2

Product Attributes

AttributeValue
Product StatusActive
TypeToroidal
Voltage - Primary115V, 230V
Voltage - Secondary (Full Load)Parallel 9V, Series 18V
Current - Output (Max)Parallel 17.6A, Series 8.8A
Primary Winding(s)Dual
Secondary Winding(s)Dual
Center TapNo
Power - Max160VA
Mounting TypeChassis Mount
Termination StyleWire Leads
Size / Dimension103.00mm Dia x 48.00mm W
Height - Seated (Max)52.0mm
Voltage - Isolation4000Vrms
Weight3.6 lbs (1.6 kg)

Frequently Asked Questions

VPT18-8800 is a Power Transformers manufactured by Triad Magnetics. PWR XFMR TORO 160VA CHAS MT

The mounting type of VPT18-8800 is Chassis Mount.

The current rating of VPT18-8800 is Parallel 17.6A, Series 8.8A.

The size of VPT18-8800 is 103.00mm Dia x 48.00mm W.
