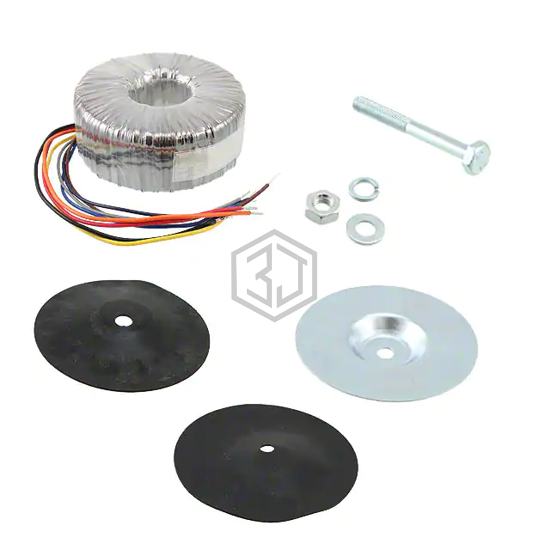

VPT100-5000 - Triad Magnetics - Power Transformers

VPT100-5000

Triad Magnetics

PWR XFMR TORO 500VA CHAS MT

VPT100-5000 is a Power Transformers manufactured by Triad Magnetics. PWR XFMR TORO 500VA CHAS MT. Key specifications: mounting type Chassis Mount, current - output (max) Parallel 10A, Series 5A, size / dimension 140.00mm Dia x 60.00mm W, termination style Wire Leads.

In Stock: 9

Product Attributes

AttributeValue
Product StatusActive
TypeToroidal
Voltage - Primary115V, 230V
Voltage - Secondary (Full Load)Parallel 50V, Series 100V
Current - Output (Max)Parallel 10A, Series 5A
Primary Winding(s)Dual
Secondary Winding(s)Dual
Center TapNo
Power - Max500VA
Mounting TypeChassis Mount
Termination StyleWire Leads
Size / Dimension140.00mm Dia x 60.00mm W
Height - Seated (Max)66.0mm
Voltage - Isolation4000Vrms
Weight9.3 lbs (4.2 kg)

Frequently Asked Questions

VPT100-5000 is a Power Transformers manufactured by Triad Magnetics. PWR XFMR TORO 500VA CHAS MT

The mounting type of VPT100-5000 is Chassis Mount.

The current rating of VPT100-5000 is Parallel 10A, Series 5A.

The size of VPT100-5000 is 140.00mm Dia x 60.00mm W.
