TRANSF 600 OHM 90MA DC TEL

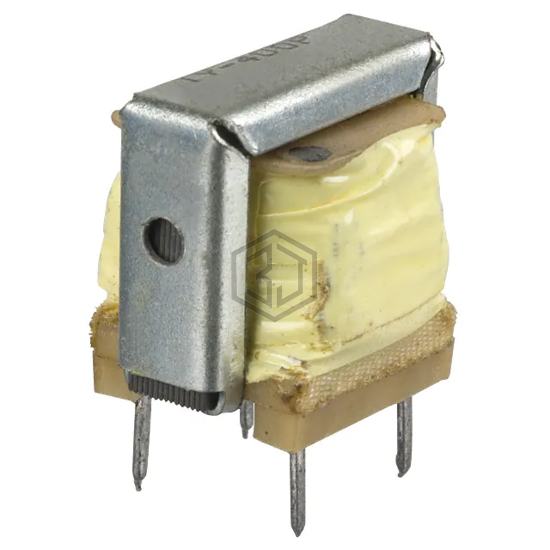

TY-400P is a Audio Transformers manufactured by Triad Magnetics. TRANSF 600 OHM 90MA DC TEL. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, size / dimension 0.820" L x 0.715" W (20.83mm x 18.16mm), termination style PC Pin.
In Stock: 6,016
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1:1.07 |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 600 |
| DC Resistance (DCR) - Primary | 76.5Ohm |
| DC Resistance (DCR) - Secondary | 108Ohm |
| Transformer Type | Data/Voice Coupling |
| Frequency Range | 300Hz ~ 3.5kHz |
| Frequency Response | ±0.5dB |
| Voltage - Isolation | 1500VAC |
| Insertion Loss | 1.75dB Typ |
| Return Loss | 15dB Typ |
| Power Level | -45dB ~ 7dB |
| Operating Temperature | -20°C ~ 85°C |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.820" L x 0.715" W (20.83mm x 18.16mm) |
| Height - Seated (Max) | 0.750" (19.05mm) |
| Termination Style | PC Pin |
