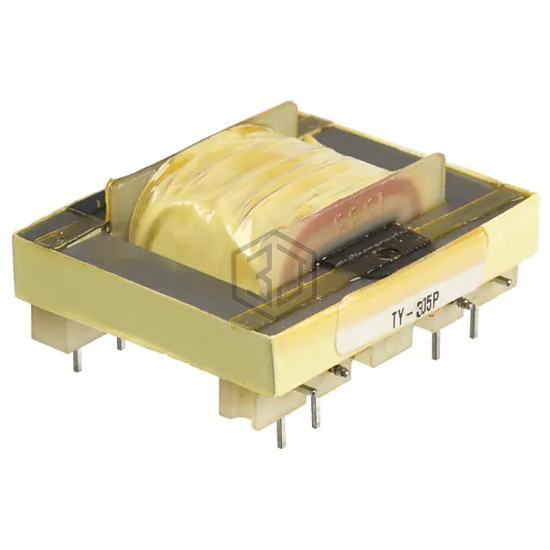

TY-305P - Triad Magnetics - Audio Transformers

TY-305P

Triad Magnetics

TRANSF 600 OHM 100MA DC TEL

TY-305P is a Audio Transformers manufactured by Triad Magnetics. TRANSF 600 OHM 100MA DC TEL. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, size / dimension 1.650" L x 1.375" W (41.91mm x 34.93mm), termination style PC Pin.

In Stock: 3,608

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary1:0.90
Impedance - Primary (Ohms)600
Impedance - Secondary (Ohms)600
DC Resistance (DCR) - Primary108Ohm
DC Resistance (DCR) - Secondary61Ohm
Transformer TypeData/Voice Coupling
Frequency Range300Hz ~ 3.5kHz
Frequency Response±0.5dB
Voltage - Isolation1500VAC
Insertion Loss1.5dB Typ
Return Loss10dB Typ
Power Level-45dB ~ 7dB
Operating Temperature-20°C ~ 85°C
Approval Agency-
Mounting TypeThrough Hole
Size / Dimension1.650" L x 1.375" W (41.91mm x 34.93mm)
Height - Seated (Max)0.680" (17.27mm)
Termination StylePC Pin

Frequently Asked Questions

TY-305P is a Audio Transformers manufactured by Triad Magnetics. TRANSF 600 OHM 100MA DC TEL

The mounting type of TY-305P is Through Hole.

The operating temperature range of TY-305P is -20°C ~ 85°C.

The size of TY-305P is 1.650" L x 1.375" W (41.91mm x 34.93mm).
