TRANSF 600 OHM 0MA DC TEL HYBRID

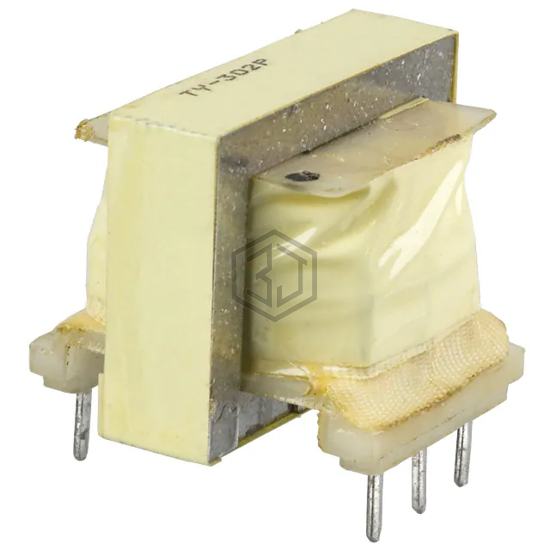

TY-302P is a Audio Transformers manufactured by Triad Magnetics. TRANSF 600 OHM 0MA DC TEL HYBRID. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, size / dimension 1.040" L x 0.960" W (26.42mm x 24.38mm), termination style PC Pin.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1:1.47 |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 600/600 |
| DC Resistance (DCR) - Primary | 34Ohm |
| DC Resistance (DCR) - Secondary | 24Ohm, 24Ohm |
| Transformer Type | Data/Voice Coupling |
| Frequency Range | 300Hz ~ 3.5kHz |
| Frequency Response | - |
| Voltage - Isolation | 1500VAC |
| Insertion Loss | 0.65dB Typ |
| Return Loss | 32dB Typ |
| Power Level | -45dB ~ 7dB |
| Operating Temperature | -20°C ~ 85°C |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.040" L x 0.960" W (26.42mm x 24.38mm) |
| Height - Seated (Max) | 0.870" (22.10mm) |
| Termination Style | PC Pin |
Submit your RFQ for TY-302P and get a quote within 24 hours.
