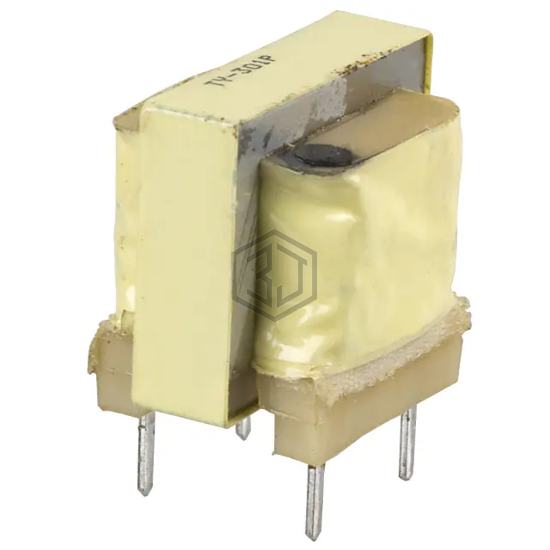

TY-301P - Triad Magnetics - Audio Transformers

TY-301P

Triad Magnetics

TRANSF 900 OHM SEC. 0MA DC TEL

TY-301P is a Audio Transformers manufactured by Triad Magnetics. TRANSF 900 OHM SEC. 0MA DC TEL. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, size / dimension 0.812" L x 0.700" W (20.62mm x 17.78mm), termination style PC Pin.

In Stock: 4,684

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary1:1.27
Impedance - Primary (Ohms)600
Impedance - Secondary (Ohms)900
DC Resistance (DCR) - Primary36Ohm
DC Resistance (DCR) - Secondary76Ohm
Transformer TypeData/Voice Coupling
Frequency Range300Hz ~ 3.5kHz
Frequency Response±0.5dB
Voltage - Isolation1500VAC
Insertion Loss1dB Typ
Return Loss26dB Typ
Power Level-45dB ~ 7dB
Operating Temperature-20°C ~ 85°C
Approval Agency-
Mounting TypeThrough Hole
Size / Dimension0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max)0.740" (18.80mm)
Termination StylePC Pin

Frequently Asked Questions

TY-301P is a Audio Transformers manufactured by Triad Magnetics. TRANSF 900 OHM SEC. 0MA DC TEL

The mounting type of TY-301P is Through Hole.

The operating temperature range of TY-301P is -20°C ~ 85°C.

The size of TY-301P is 0.812" L x 0.700" W (20.62mm x 17.78mm).
