TRANSF 600 OHM 0MA DC TEL HYBRID

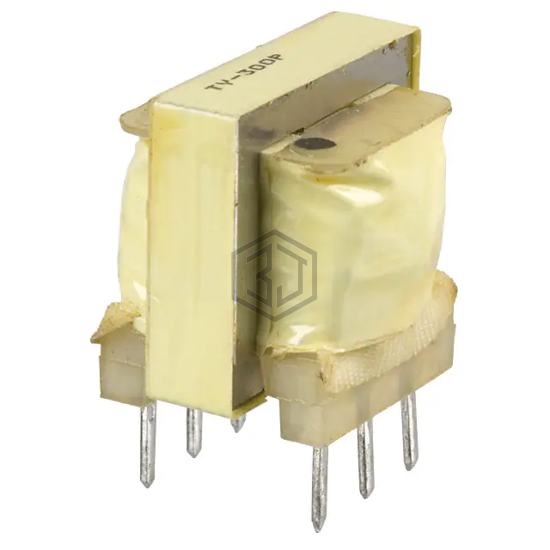

TY-300P is a Audio Transformers manufactured by Triad Magnetics. TRANSF 600 OHM 0MA DC TEL HYBRID. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, size / dimension 0.812" L x 0.700" W (20.62mm x 17.78mm), termination style PC Pin.
In Stock: 555
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1:2.48 |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 600/600 |
| DC Resistance (DCR) - Primary | 172Ohm |
| DC Resistance (DCR) - Secondary | 66Ohm, 66Ohm |
| Transformer Type | Data/Voice Coupling |
| Frequency Range | 300Hz ~ 3.5kHz |
| Frequency Response | - |
| Voltage - Isolation | 1500VAC |
| Insertion Loss | 0.8dB Typ |
| Return Loss | 30dB Typ |
| Power Level | -45dB ~ 7dB |
| Operating Temperature | -20°C ~ 85°C |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.812" L x 0.700" W (20.62mm x 17.78mm) |
| Height - Seated (Max) | 0.740" (18.80mm) |
| Termination Style | PC Pin |
Submit your RFQ for TY-300P and get a quote within 24 hours.
