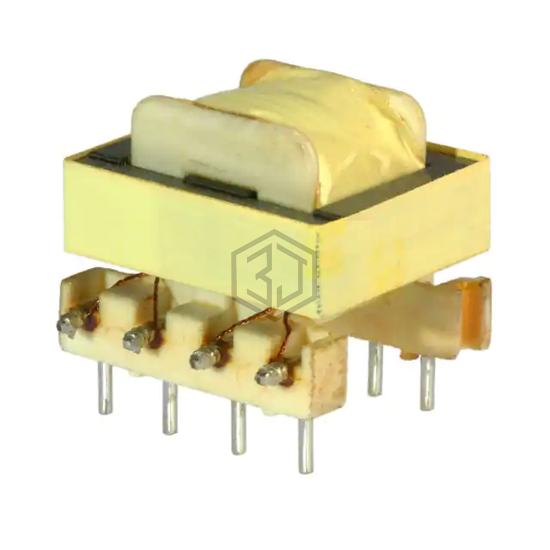

PC MOUNT AUDIO TRANSFORMER
TY-250P is a Audio Transformers manufactured by Triad Magnetics. PC MOUNT AUDIO TRANSFORMER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, size / dimension 0.800" L x 0.770" W (20.32mm x 19.56mm), termination style PC Pin.
In Stock: 961
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1:1, 2:1 |
| Impedance - Primary (Ohms) | 1kCT |
| Impedance - Secondary (Ohms) | 1kCT |
| DC Resistance (DCR) - Primary | 172Ohm |
| DC Resistance (DCR) - Secondary | 172Ohm |
| Transformer Type | Impedance Matching |
| Frequency Range | 20Hz ~ 20kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 1500VAC |
| Insertion Loss | 2.8dB Max @ 1kHz |
| Return Loss | - |
| Power Level | - |
| Operating Temperature | -40°C ~ 105°C |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.800" L x 0.770" W (20.32mm x 19.56mm) |
| Height - Seated (Max) | 0.700" (17.78mm) |
| Termination Style | PC Pin |
Submit your RFQ for TY-250P and get a quote within 24 hours.
