TRANSF 10K AUDIO CTAP/2K CTAP

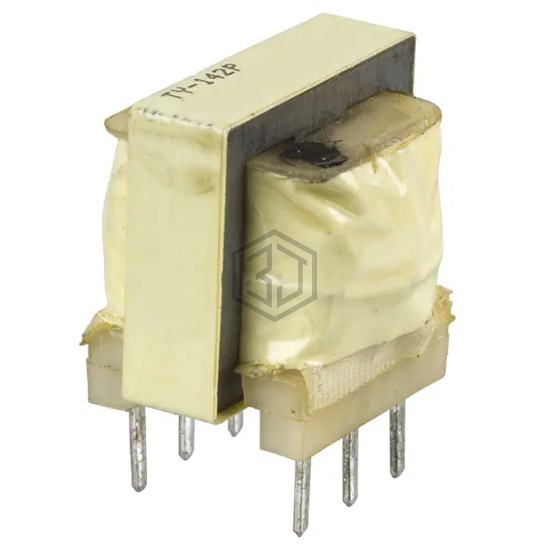

TY-142P-B is a Audio Transformers manufactured by Triad Magnetics. TRANSF 10K AUDIO CTAP/2K CTAP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, size / dimension 0.812" L x 0.700" W (20.62mm x 17.78mm), termination style PC Pin.
In Stock: 4,258
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 2.24:1 |
| Impedance - Primary (Ohms) | 10kCT |
| Impedance - Secondary (Ohms) | 2kCT |
| DC Resistance (DCR) - Primary | 750Ohm |
| DC Resistance (DCR) - Secondary | 217Ohm |
| Transformer Type | Data/Voice Coupling |
| Frequency Range | 200Hz ~ 15kHz |
| Frequency Response | ±2dB |
| Voltage - Isolation | 1500V |
| Insertion Loss | 1.5dB @ 1kHz |
| Return Loss | 26dB |
| Power Level | - |
| Operating Temperature | -20°C ~ 85°C |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.812" L x 0.700" W (20.62mm x 17.78mm) |
| Height - Seated (Max) | 0.740" (18.80mm) |
| Termination Style | PC Pin |
Submit your RFQ for TY-142P-B and get a quote within 24 hours.
