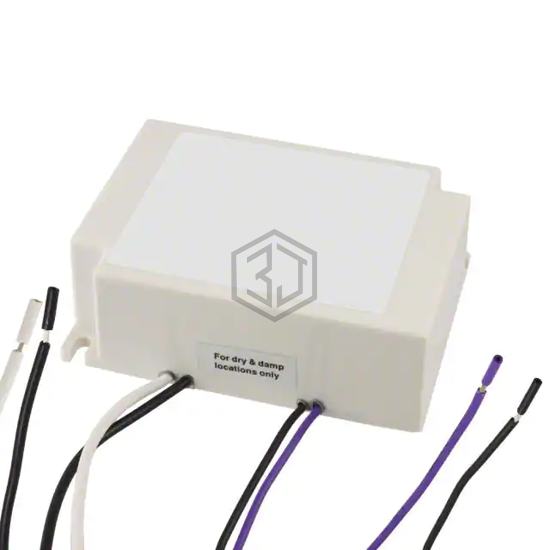

LED DRIVER CV AC/DC 24V 1.67A
TLD1040-24 is a LED Drivers manufactured by Triad Magnetics. LED DRIVER CV AC/DC 24V 1.67A. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 24V, current - output (max) 1.67A, size / dimension 3.74" L x 2.76" W x 1.26" H (95.0mm x 70.0mm x 32.0mm).
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 100VAC |
| Voltage - Input (Max) | 304VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 1.67A |
| Power (Watts) | 40 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP66, NEMA 4 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.74" L x 2.76" W x 1.26" H (95.0mm x 70.0mm x 32.0mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
