LED DRIVER CC AC/DC 18-36V 350MA

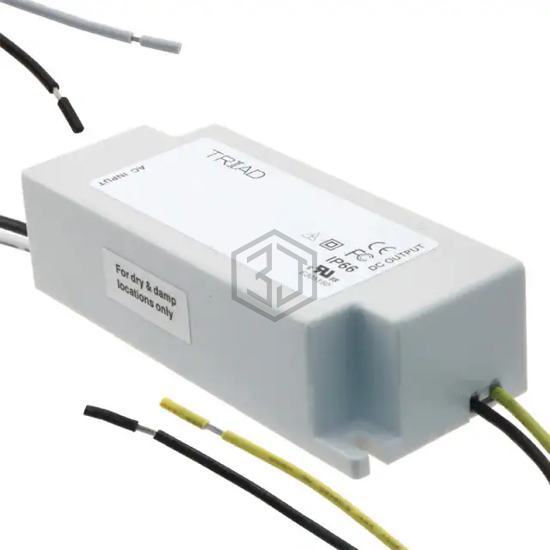

TLD1020-36-C0350 is a LED Drivers manufactured by Triad Magnetics. LED DRIVER CC AC/DC 18-36V 350MA. Key specifications: operating temperature -30°C ~ 60°C, voltage - output 18 ~ 36V, current - output (max) 350mA, size / dimension 3.74" L x 1.57" W x 0.98" H (95.0mm x 40.0mm x 25.0mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 100VAC |
| Voltage - Input (Max) | 304VAC |
| Voltage - Output | 18 ~ 36V |
| Current - Output (Max) | 350mA |
| Power (Watts) | 20 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP66, NEMA 4 |
| Operating Temperature | -30°C ~ 60°C |
| Efficiency | 84% |
| Termination Style | Wire Leads |
| Size / Dimension | 3.74" L x 1.57" W x 0.98" H (95.0mm x 40.0mm x 25.0mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
Submit your RFQ for TLD1020-36-C0350 and get a quote within 24 hours.
