TRANSF 50K CT/1K CT AUDIO

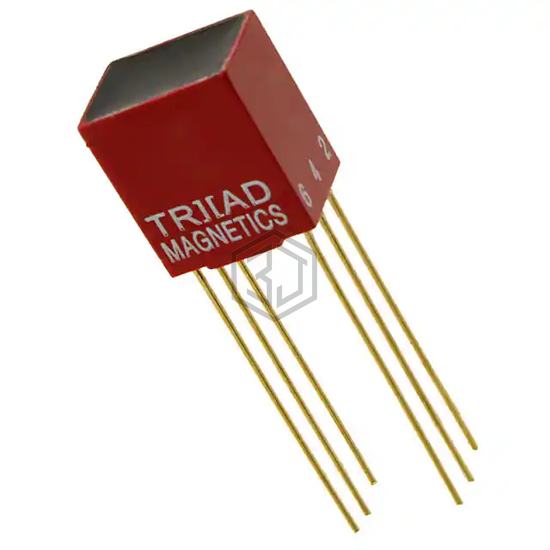

SP-5 is a Audio Transformers manufactured by Triad Magnetics. TRANSF 50K CT/1K CT AUDIO. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, size / dimension 0.410" L x 0.310" W (10.41mm x 7.87mm), termination style PC Pin.
In Stock: 78
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 7.1:1 |
| Impedance - Primary (Ohms) | 50kCT |
| Impedance - Secondary (Ohms) | 1kCT |
| DC Resistance (DCR) - Primary | 3.8kOhm |
| DC Resistance (DCR) - Secondary | 75Ohm |
| Transformer Type | Audio Coupling |
| Frequency Range | 300Hz ~ 100kHz |
| Frequency Response | ±2dB |
| Voltage - Isolation | 1000VRMS @ 1 Second |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 25mW |
| Operating Temperature | -40°C ~ 85°C |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.410" L x 0.310" W (10.41mm x 7.87mm) |
| Height - Seated (Max) | 0.465" (11.80mm) |
| Termination Style | PC Pin |
Submit your RFQ for SP-5 and get a quote within 24 hours.
