FIXED IND 2.5MH 400MA 2.45OHM TH

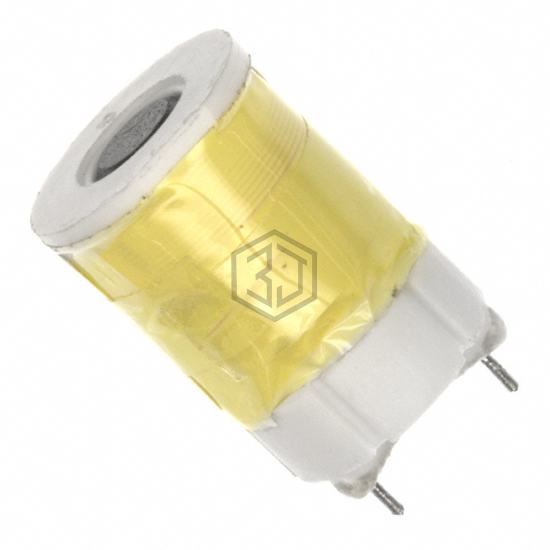

RC-3 is a Fixed Inductors manufactured by Triad Magnetics. FIXED IND 2.5MH 400MA 2.45OHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Vertical Cylinder, current rating (amps) 400 mA.
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.5 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.45Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.600" Dia (15.24mm) |
| Height - Seated (Max) | 0.930" (23.62mm) |
Submit your RFQ for RC-3 and get a quote within 24 hours.
