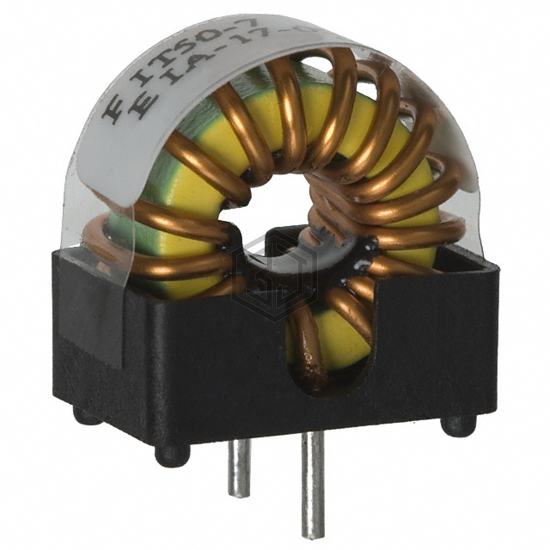

FIXED IND 16.76UH 5.7A 20MOHM TH
FIT50-5 is a Fixed Inductors manufactured by Triad Magnetics. FIXED IND 16.76UH 5.7A 20MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case Radial, Vertical (Open), current rating (amps) 5.7 A.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 16.76 µH |
| Tolerance | - |
| Current Rating (Amps) | 5.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.700" L x 0.475" W (17.78mm x 12.07mm) |
| Height - Seated (Max) | 0.750" (19.05mm) |
Submit your RFQ for FIT50-5 and get a quote within 24 hours.
