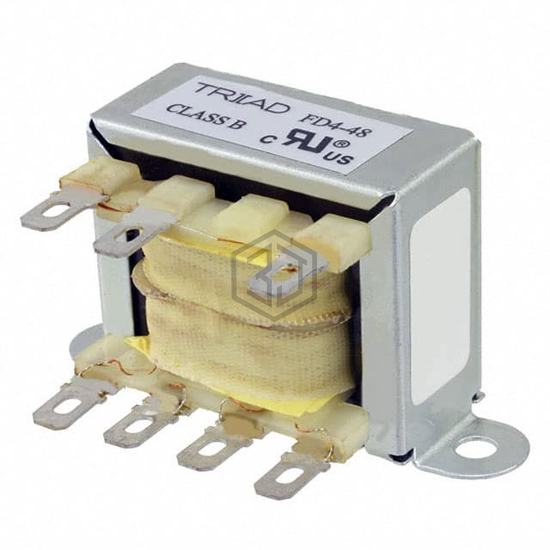

FD4-48 - Triad Magnetics - Power Transformers

FD4-48

Triad Magnetics

PWR XFMR LAMINATED 6VA CHAS MT

FD4-48 is a Power Transformers manufactured by Triad Magnetics. PWR XFMR LAMINATED 6VA CHAS MT. Key specifications: mounting type Chassis Mount, current - output (max) 125mA, size / dimension 65.07mm L x 31.75mm W, termination style Solder, Quick Connect - 0.187" (4.7mm).

In Stock: 7,307

Product Attributes

AttributeValue
Product StatusActive
TypeLaminated Core
Voltage - Primary115V, 230V
Voltage - Secondary (Full Load)48V
Current - Output (Max)125mA
Primary Winding(s)Dual
Secondary Winding(s)Single
Center TapYes
Power - Max6VA
Mounting TypeChassis Mount
Termination StyleSolder, Quick Connect - 0.187" (4.7mm)
Size / Dimension65.07mm L x 31.75mm W
Height - Seated (Max)34.93mm
Voltage - Isolation2500VAC
Weight0.44 lb (199.58 g)

Frequently Asked Questions

FD4-48 is a Power Transformers manufactured by Triad Magnetics. PWR XFMR LAMINATED 6VA CHAS MT

The mounting type of FD4-48 is Chassis Mount.

The current rating of FD4-48 is 125mA.

The size of FD4-48 is 65.07mm L x 31.75mm W.
