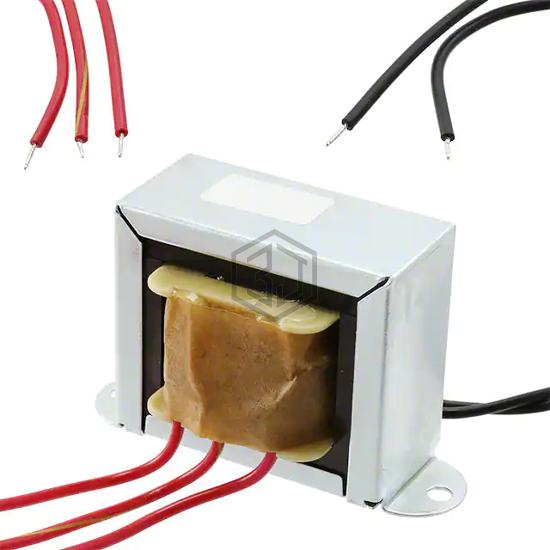

F-12X - Triad Magnetics - Power Transformers

F-12X

Triad Magnetics

PWR XFMR LAMINATED 40VA CHAS MT

F-12X is a Power Transformers manufactured by Triad Magnetics. PWR XFMR LAMINATED 40VA CHAS MT. Key specifications: mounting type Chassis Mount, current - output (max) 8A, size / dimension 101.60mm L x 57.15mm W, termination style Wire Leads.

In Stock: 9,574

Product Attributes

AttributeValue
Product StatusActive
TypeLaminated Core
Voltage - Primary115V
Voltage - Secondary (Full Load)5V
Current - Output (Max)8A
Primary Winding(s)Single
Secondary Winding(s)Single
Center TapYes
Power - Max40VA
Mounting TypeChassis Mount
Termination StyleWire Leads
Size / Dimension101.60mm L x 57.15mm W
Height - Seated (Max)65.86mm
Voltage - Isolation2500Vrms
Weight2.5 lbs (1.1 kg)

Frequently Asked Questions

F-12X is a Power Transformers manufactured by Triad Magnetics. PWR XFMR LAMINATED 40VA CHAS MT

The mounting type of F-12X is Chassis Mount.

The current rating of F-12X is 8A.

The size of F-12X is 101.60mm L x 57.15mm W.
