CURR SENSE XFMR 25A T/H

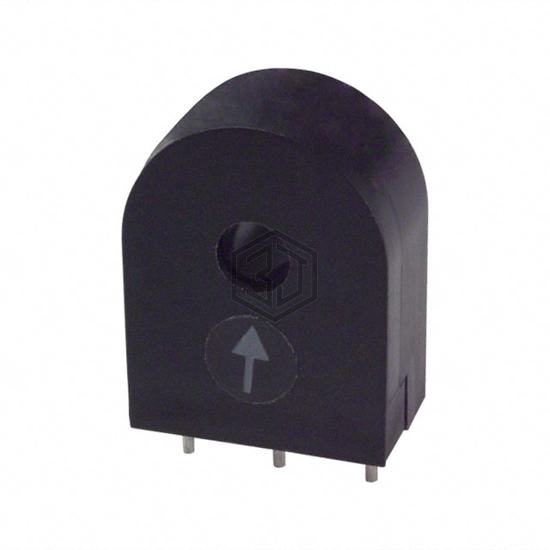

CST306-3A is a Current Sense Transformers manufactured by Triad Magnetics. CURR SENSE XFMR 25A T/H. Key specifications: mounting type Through Hole, current rating (amps) 25 A, size / dimension 0.690" L x 0.385" W (17.53mm x 9.78mm), termination style PC Pin.
In Stock: 1,405
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 20kHz ~ 200kHz |
| Type | Non-Invasive (Solid Core) |
| Current Rating (Amps) | 25 A |
| Inductance | 55 mH |
| ET (Volt-Time) | 2000VµS |
| Turns Ratio - Primary:Secondary | - |
| Current Ratio | 200:1 |
| DC Resistance (DCR) | 3.75Ohm Max |
| Ratings | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.690" L x 0.385" W (17.53mm x 9.78mm) |
| Height - Seated (Max) | 0.915" (23.24mm) |
| Termination Style | PC Pin |
Submit your RFQ for CST306-3A and get a quote within 24 hours.
