ENCAPSULATED PCB CURRENT SENSE X

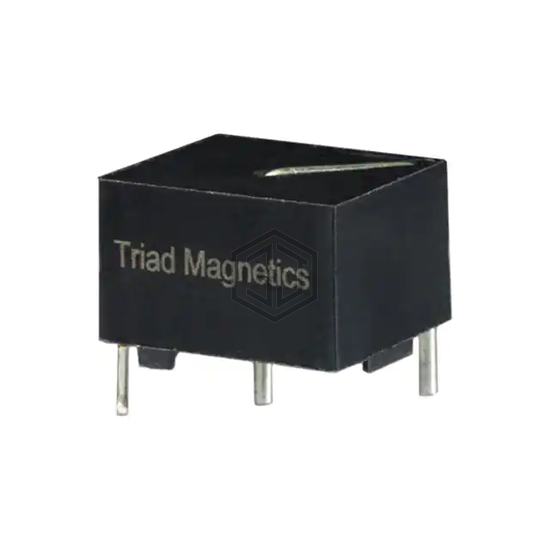

CST25-0500 is a Current Sense Transformers manufactured by Triad Magnetics. ENCAPSULATED PCB CURRENT SENSE X. Key specifications: mounting type Through Hole, current rating (amps) 25 A, size / dimension 0.669" L x 0.591" W (17.00mm x 15.00mm), termination style PC Pin.
In Stock: 1,413
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 50kHz ~ 500kHz |
| Type | Invasive |
| Current Rating (Amps) | 25 A |
| Inductance | 470 mH |
| ET (Volt-Time) | 1750VµS |
| Turns Ratio - Primary:Secondary | 1:500 |
| Current Ratio | - |
| DC Resistance (DCR) | 16Ohm |
| Ratings | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.669" L x 0.591" W (17.00mm x 15.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Termination Style | PC Pin |
Submit your RFQ for CST25-0500 and get a quote within 24 hours.
