CURR SENSE XFMR 80A T/H

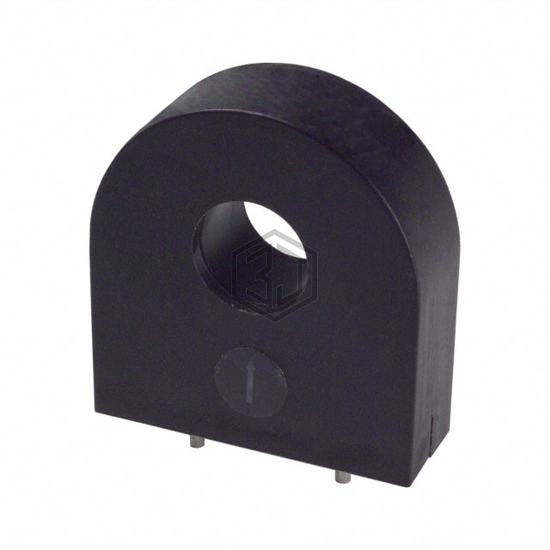

CST206-2T is a Current Sense Transformers manufactured by Triad Magnetics. CURR SENSE XFMR 80A T/H. Key specifications: mounting type Through Hole, current rating (amps) 80 A, size / dimension 1.075" L x 0.400" W (27.31mm x 10.16mm), termination style PC Pin.
In Stock: 7,056
| Attribute | Value |
|---|---|
| Product Status | Active |
| Frequency Range | 20kHz ~ 200kHz |
| Type | Non-Invasive (Solid Core) |
| Current Rating (Amps) | 80 A |
| Inductance | 56 mH |
| ET (Volt-Time) | 4000VµS |
| Turns Ratio - Primary:Secondary | - |
| Current Ratio | 200:1 |
| DC Resistance (DCR) | 3.5Ohm Max |
| Ratings | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.075" L x 0.400" W (27.31mm x 10.16mm) |
| Height - Seated (Max) | 1.225" (31.12mm) |
| Termination Style | PC Pin |
Submit your RFQ for CST206-2T and get a quote within 24 hours.
